104123 | MOLLE Panel Lock Mount for Masterlock Python

Introduction

Installation of the MOLLE Panel Lock Mount for Masterlock Python Locks' is quick and simple, resulting in new and innovative way to secure your gear/organizational items to your vehicle MOLLE panels.

Install Time & Difficulty

10 minutes

Easy

Tools

Just your hands and a SAE Allen Key Set with a 5/32's Allen Key

Kit Includes

1x Lock Mount Bracket

• 1x Stainless Steel MOLLE Nut
• Stainless Steel Hardware
• BuiltRight Keychain for your keys

* Kit does not include Masterlock Python lock. You will need to purchase that separately.

Instructions

1. place the MOLLE nut on the back side of the lower hole on the lock bracket, with the engraved side facing you. Slide the washer over the bolt, and then pass it through the lower hole into the threaded hole on the MOLLE nut called out as "1/4-20".

2. Pass the upper tab of the lock bracket through the MOLLE feature and then with the MOLLE nut "clocked" in a horizontal orientation pass it through the lower MOLLE feature on the MOLLE panel.

3. Rotate the MOLLE nut counter clockwise 45 degrees and pull out towards the face of the panel, the MOLLE nut should lock into the MOLLE feature and then continue to tighten the allen head bolt until snug.

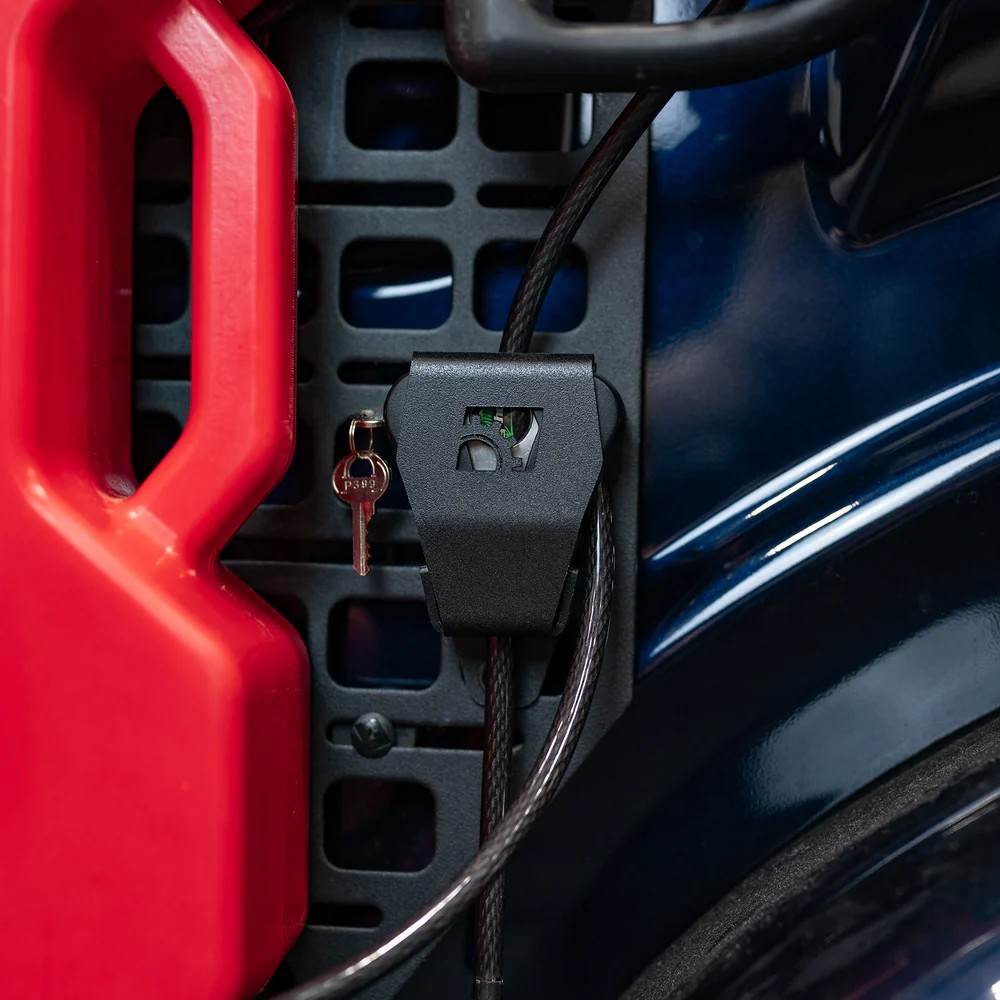

4. Your MOLLE Panel Lock Mount for Masterlock Python Locks is now secure to your MOLLE panel, grab your Python lock and your gear and get it secured!
