Introduction
The Bulkhead Accessory Rail for 2024+ Ranger and Ranger Raptor is ridiculously rigid, lightweight and a perfect modular storage solution that allows you to secure our steel MOLLE panels, QuickFist riser mounts, other accessories and even mountain bike fork mounts to the back of your cab wall. This is a very simple install that results in a ton of extra utility for your truck bed.
Install Time & Difficulty
10 - 15 minutes
Easy
Tools
T30 Torx tool or bit
4-6" Extension
Impact driver, Socket Set or Screwdriver
5/32 Allen wrench
Instructions
1. Locate the 1-piece horizontal black aluminum 80/20 1"x 3" black extrusion.

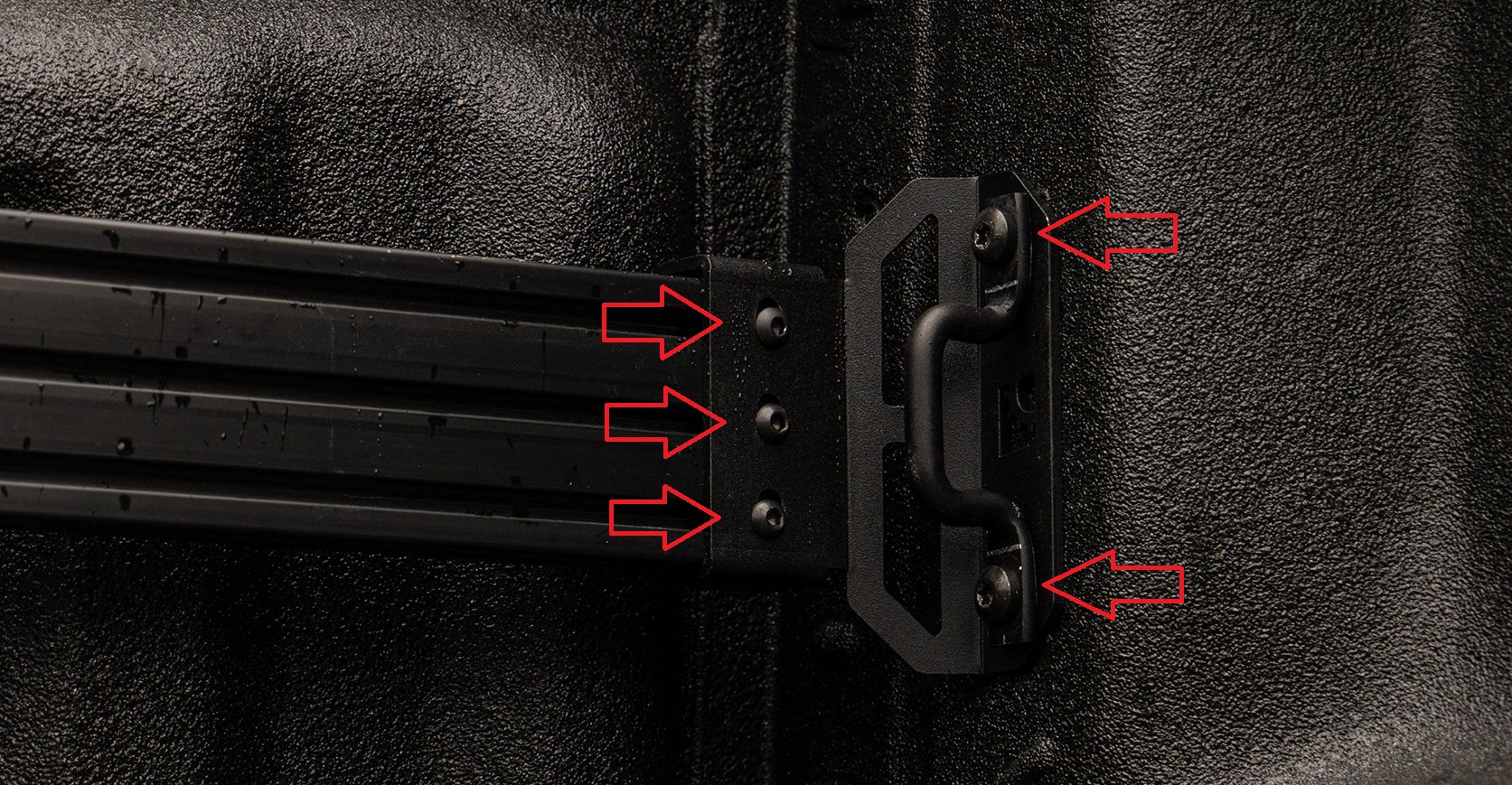

2. Then, using 3ea slide in t-nuts for each end, secure the end brackets with the provided 5/32's allen head bolts, leaving the assembly loose to provide some lateral adjustment.
3. Next, remove the tie-downs in either side of the bed using a T30 torx and move the BAR assembly into place.
4. Tighten brackets to bedside before tightening the hardware connecting the brackets to the rail itself.
5. An "Accessory Hardware Kit" is provided for mouthing mount and attachment and or the 2ea 25"x15.5" UNiversal Steel MOLLE Tech PLates if you orders your kit with those included.
